Protective gas ovens

The protective gas furnaces and retort furnaces with retort of the PKR model series and the protective gas furnaces and retort furnaces with air circulation of the PKRC model series have been specially developed for the heat treatment of materials in a controlled protective gas atmosphere (e.g. argon, nitrogen, forming gas, etc.). At a maximum temperature of 950 °C (briefly up to 1100 °C when using an Inconel retort), you obtain scale-free results, especially when annealing, hardening, brazing or sintering steel.



call us email

Product features at a glance

  • Three-sided heating (base and both sides), ensures even temperature distribution
  • Low gas consumption
  • Defined working environment in the retort
  • Thermocouple in the retort

Technical structure

Housing Painted steel profile frame
Interior Retort from Inconell
Thermocouple Temperature limiter as safety controller
Door Manually operated door
Door seal Elastic door seal

PKR series models (other sizes on request)

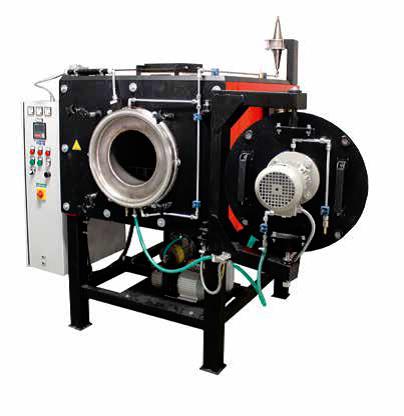

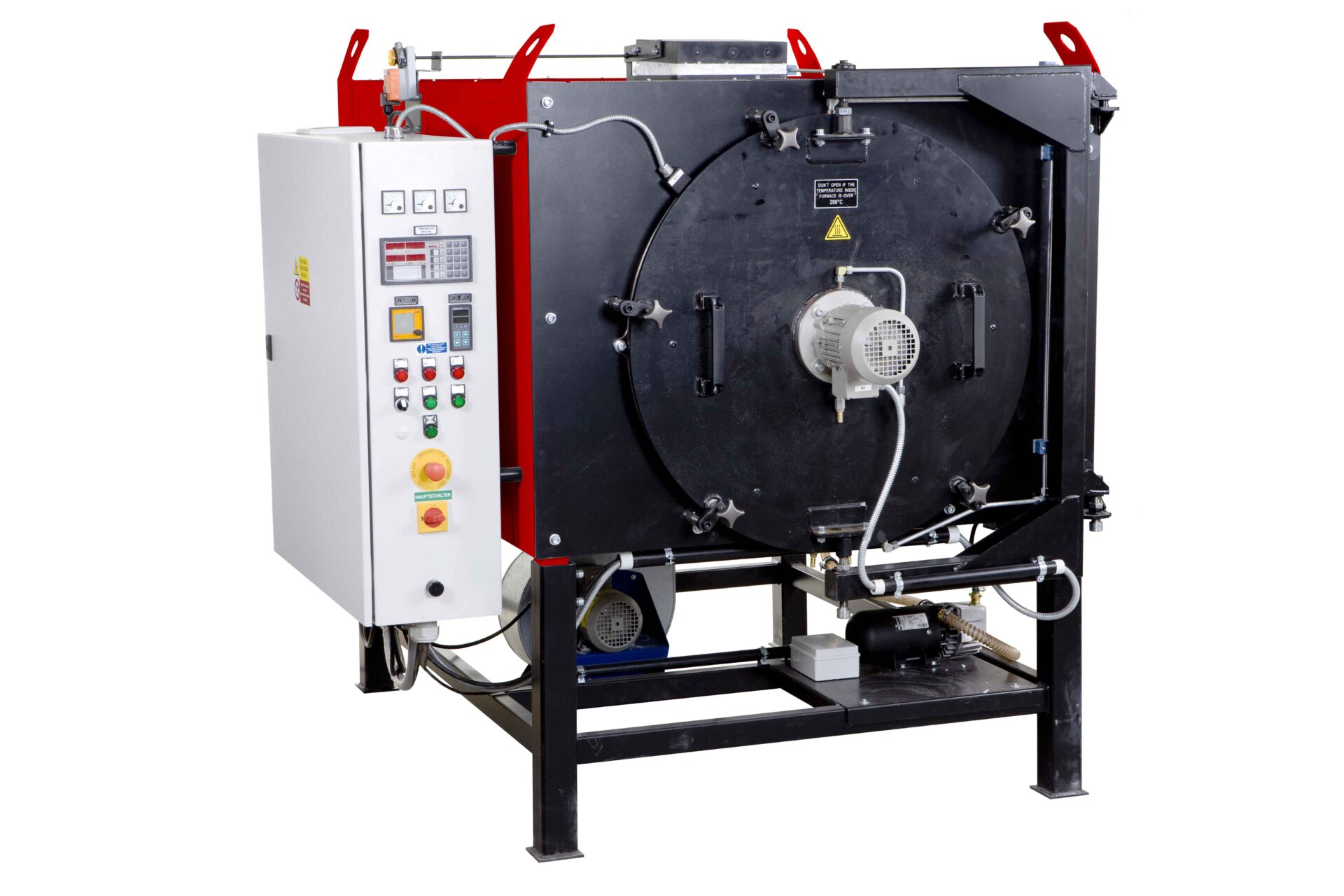

Models in the PKRC series (other sizes on request)

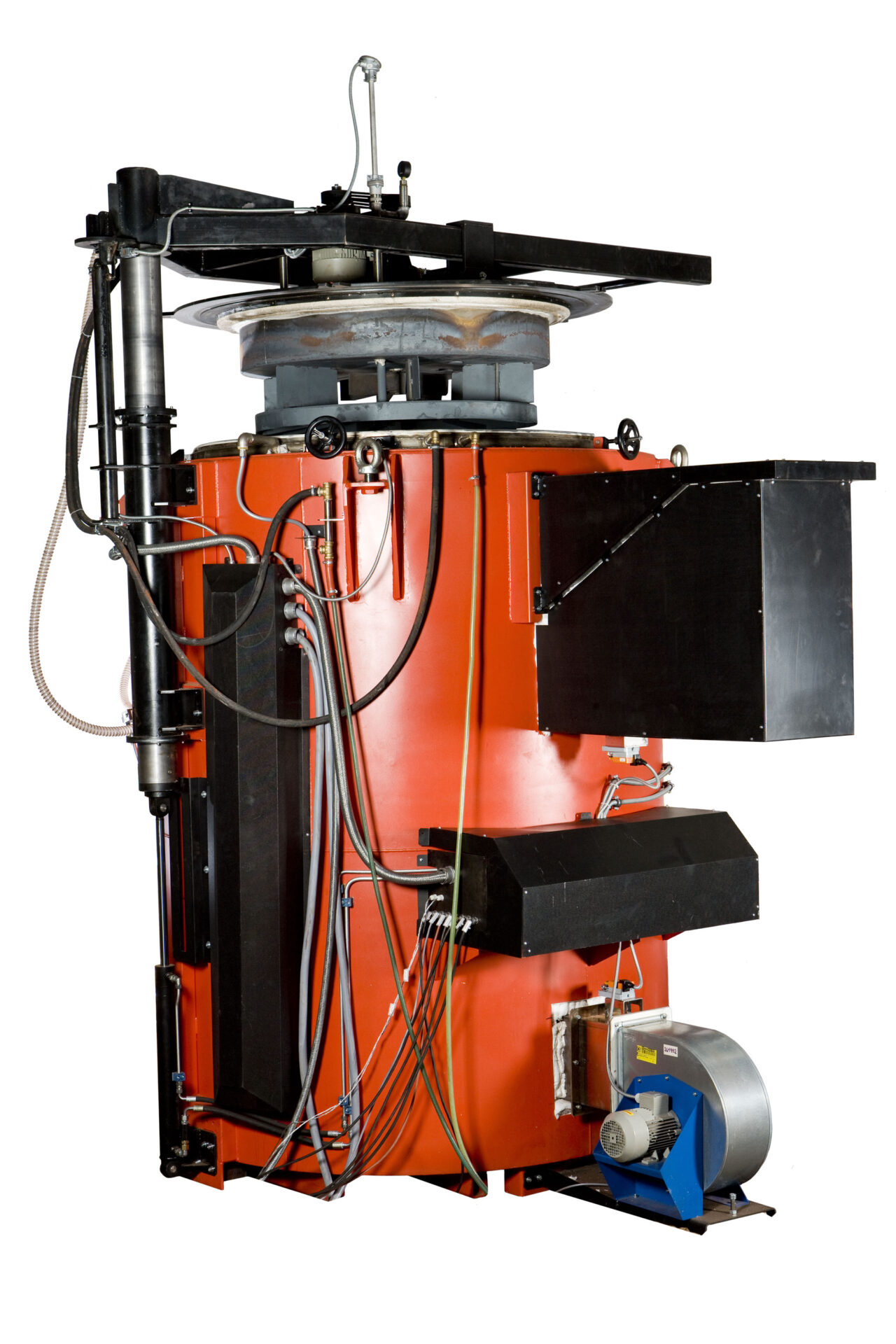

Models of the SRC series (other sizes on request)
