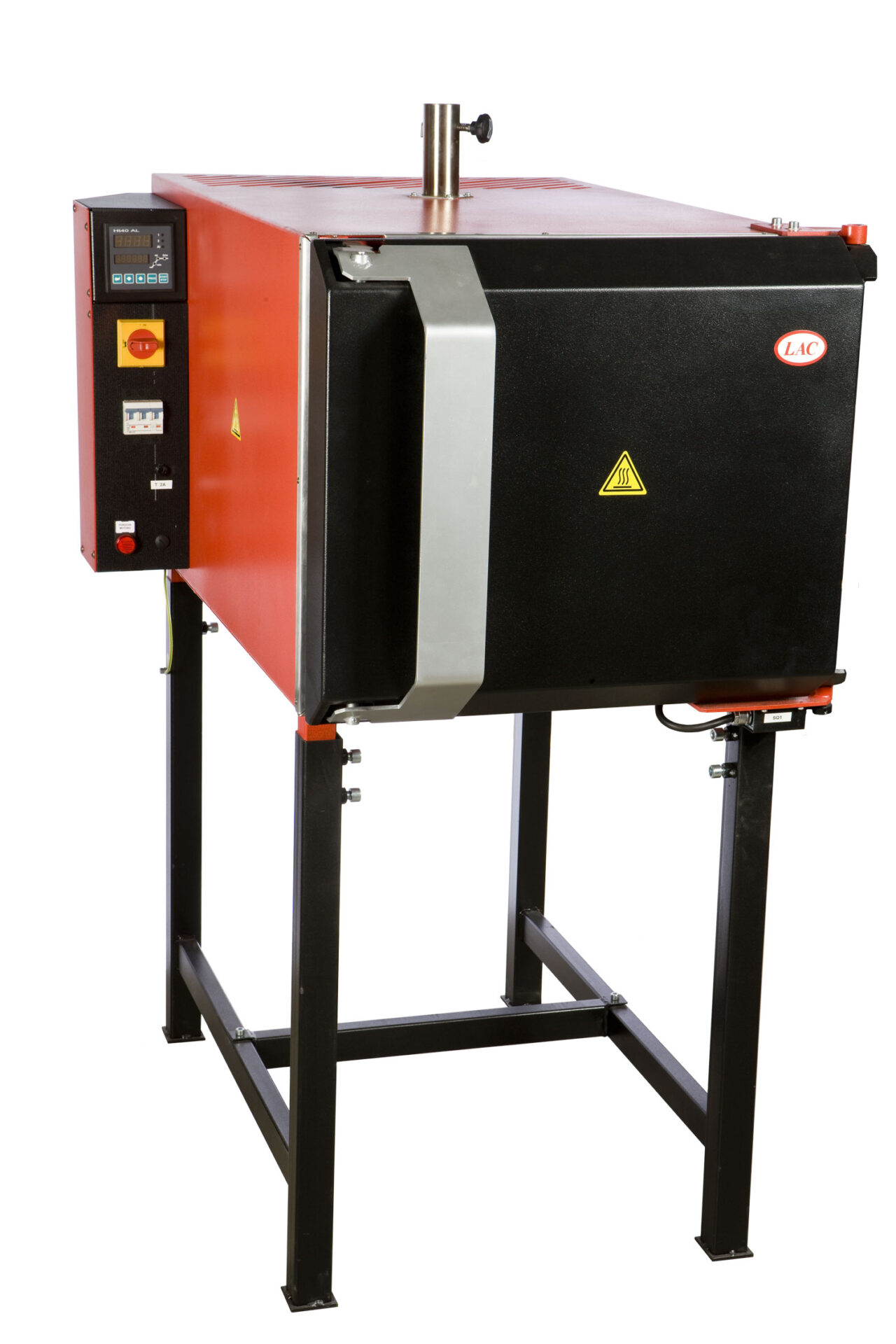

DeutschSmall convection ovens
These convection chamber ovens are used for heat treatments where very good temperature uniformity and distribution is required but little space is available. The compact design is ideal for this. These ovens are mainly used in laboratories, but also in industry, e.g. for stress relief annealing, tempering, artificial ageing, preheating, drying, etc.
Product features at a glance
- Frameless construction made of painted mild steel
- Stainless steel air circulation baffles in the oven interior
- The electrical installation is located in the rear part of the oven
- Insulation with ceramic fiber
- Recirculation fan in the rear wall of the oven
- Connection cable for permanent connection
- Type “K” thermocouple
- Heating elements on the side walls
- Manually operated exhaust air flap, optional for 450° C ovens
Technical structure
| Housing | Painted steel profile frame |
| Insulation | High-quality ceramic fiber insulation on the side Insulation made of calcium silicate panels on the floor |
| Chamber | Stainless steel |
| Floor | Sturdy stainless steel plate |
| Door | Manual swing door (hinges hinged on the right) |
| Temperature uniformity approx. | Δ 10K |
| Air circulation | Horizontal |
| Heating | Electric |
| Overheating protection | Temperature limiter (not 450° C) |
| Switching elements | SSR solid state relay ( not 450° C ) |
| Occupational safety | Safety limit switch for switching off the heating and air circulation when the door is opened (not 450° C) |
